Lenses, achromats, and cylindrical optics for your industry
MICROS Optics supplies lenses, achromats, and cylindrical optics with the highest imaging quality and a wide variety of products. Whether for series production, small batches, or prototypes, we deliver customized solutions for laboratories, research institutes, and industry.
Thanks to our expertise in processing optical glass and access to a wide range of optical glass types, we can realize demanding projects quickly and reliably. Trust in quality, innovation, and state-of-the-art manufacturing technologies for your optical components!
Technical specifications
Lenses
Application
Plano-convex, plano-concave, bi-convex, bi-concave – We manufacture customized spherical lenses of the highest quality with precise beam accuracy and true-to-life imaging.
Designs
Plano-convex, plano-concave, bi-convex, bi-concave
Also mounted on request
Material
Optical glasses (by SCHOTT, OHARA …), fused silica, filter glasses, borosilicate glass, special materials
Dimensions
Ø2 mm to 380 mm, stripe lenses as per client specification
Centre thickness tolerance
up to ± 5 µm
Diameter tolerance
Up to ± 5 µm
Roughness
0,5 nm RMS
Radii
4 mm to ∞
Surface accuracy
Up to λ/10 PV depending on dimensions, material and coating
Centering tolerance
Up to 10" as per DIN ISO 10110
Surface defects
5/Nx0,04 as per DIN ISO 10110
Coating
Metallic mirrors 190 nm up to 12.000 nm; dielectric mirrors 300 nm up to 1.600, refer to Optical coatings
Metrology
Technical specifications
Achromatic doublet lenses
Application
High quality meets high optical resolution and minimal imaging errors: our achromats help you reduce chromatic aberration in a specific wavelength range, such as in the visible range of the electromagnetic spectrum. This gives you better image quality and sharper images. Microscopes, telescopes, camera lenses – we have the right achromats for every product.
Designs
as per client specification
also mounted on request
Material
Optical glasses (by SCHOTT, OHARA …), fused silica, borosilicate glass, special materials
Dimensions
Ø3 to 150 mm, stripe lenses as per client specification
Center thickness tolerance
Up to ± 5 µm
Diameter tolerance
up to ± 5 µm
Roughness
0,5 nm RMS
Radii
4 mm up to ∞
Surface accuracy
Up to λ/10 PV depending on dimensions, material and coating
Centering error
10" as per DIN ISO 10110
Surface defects
5/Nx0,04 as per DIN ISO 10110
Coating
metallic mirrors 190 nm up to 12.000 nm; dielectric mirrors 300 nm up to 1.600 nm, refer to Optical coatings
Metrology
Technical specifications

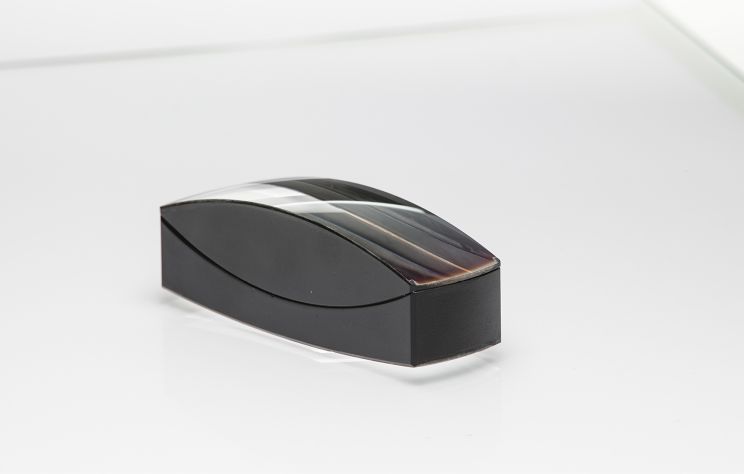

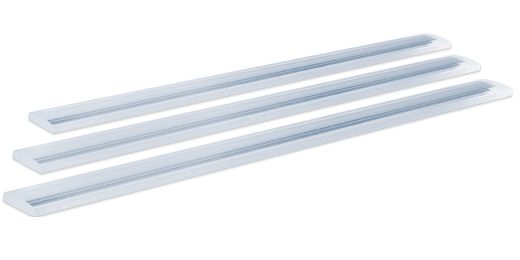

Cylindrical optics
Application
Cylindrical lenses are primarily used in optical measurement technology, laser scanning, laser diodes, and optical data processing to focus laser radiation onto a line or to change the aspect ratio of an image.
Our experts are happy to assist you in designing your cylindrical optics – no matter how demanding your requirements may be.
Designs
Cylindrical lenses, cylindrical mirrors: concave and convex; cylindrical achromatic lenses, combined lenses: spherical-cylindrical
also mounted on request
Material
Optical glasses (by SCHOTT, OHARA …), fused silica, filter glasses, borosilicate glass, special materials
Dimensions/Length
On request
Radii
from 2 mm
Surface accuracy
Up to λ/10 PV depending on dimensions, material and coating
Centring accuracy
Up to 10"
Surface defects
Up to 5/Nx0.025 as per DIN ISO 10110
Roughness
0,5 nm RMS
Coating
metallic mirrors 190 nm up to 12.000 nm; dielectric mirrors 300 nm up to 1.600 nm, refer to Optical coatings
Metrology
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection
- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
